DJI Osmo Action 5 Pro specs, features and buying guide
The DJI Osmo Action 5 Pro is a small, mount-anywhere action camera with a 1/1.3-inch sensor, 4K recording at up to 120 fps and an OLED touchscreen on each side. It suits riders, divers, hikers and anyone who wants to clamp a camera to something and forget about it, with a 20 m depth rating before the waterproof case goes on.
DJI's own specification table is the source for everything below. The headline hardware is a 1/1.3-inch CMOS sensor, a 155-degree lens with an f/2.8 aperture, 10-bit recording in D-Log M or HLG, and 64 GB of built-in storage of which 47 GB is available to use.
What separates it from a phone camera is not image quality but what it survives and how it mounts: a 146 g body, an IP68 rating for the camera and its case, an operating range from -20 C to 45 C, and DJI's own quick-release clips alongside an adapter mount for third-party accessories.
Two gaps are worth knowing before the feature list. DJI publishes no charging time on its specifications or FAQ pages, so none appears here, and DJI states that electronic stabilisation is not available in Timelapse or Slow Motion modes. Where a number is missing from this page, it is because the manufacturer does not publish it.
What to check before you buy the DJI Osmo Action 5 Pro
The bundle matters more here than on most cameras, because DJI sells the model as part of combinations that add batteries, mounts and cases. The depth rating is the detail to watch: the camera alone is rated to 20 m, and DJI says the waterproof case takes it to 60 m. If you plan to dive, check which parts a listing includes before ordering.
Storage is the other one. The camera carries 47 GB of usable built-in memory, enough for a morning rather than a holiday, so a microSD card is effectively part of the purchase. DJI lists support up to 1 TB, and cards are not included.
- Sensor
- 1/1.3-inch CMOS
- Stills
- Up to 40 MP (7296 x 5472)
- Video
- 4K at up to 120 fps, 1080p at up to 240 fps
- Stabilisation
- RockSteady 3.0, RockSteady 3.0+, HorizonBalancing and HorizonSteady
- Storage
- 64 GB built in with 47 GB available, plus microSD to 1 TB
- Battery
- 1950 mAh, up to 240 minutes of recording per DJI
- Water resistance
- To 20 m without a case, 60 m with the waterproof case
- Weight
- 146 g
Key features explained

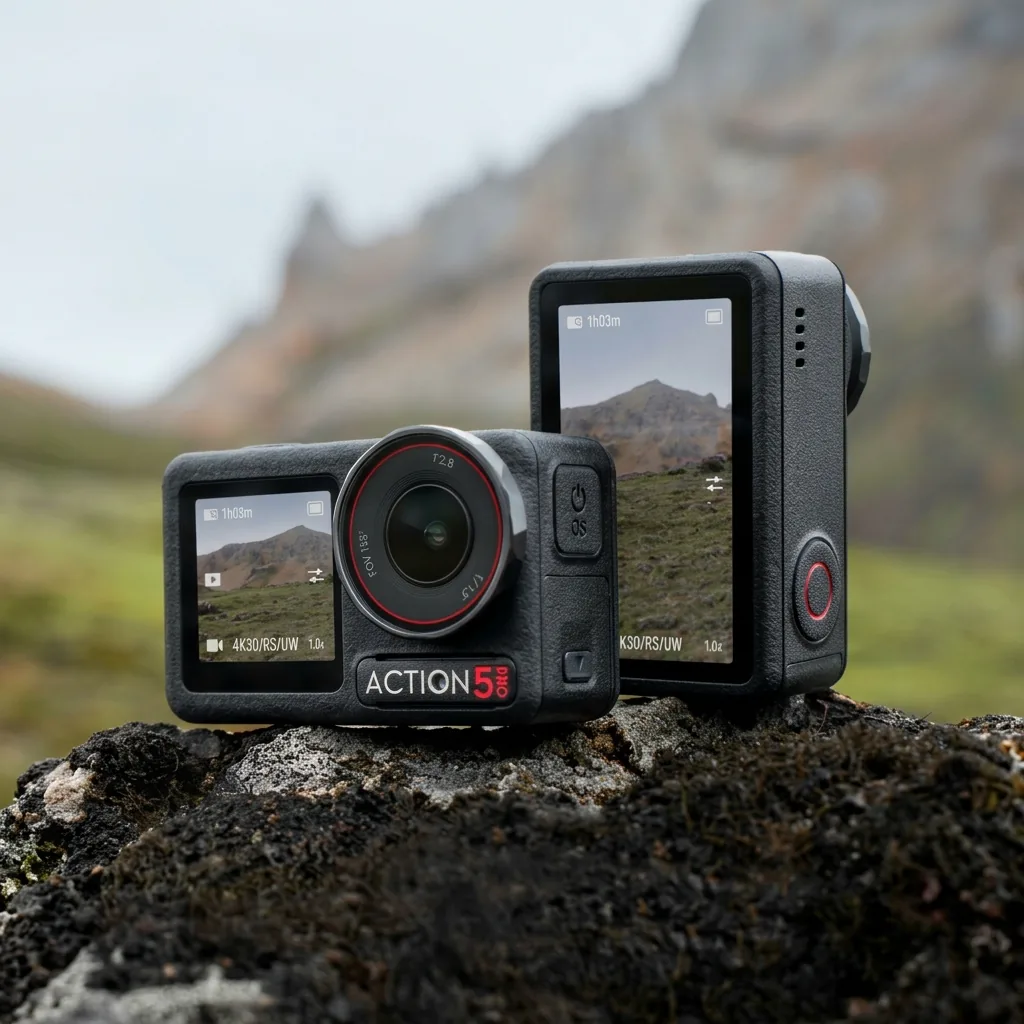

Two screens, including a front one for framing yourself
DJI fits a 1.46-inch front touchscreen and a 2.5-inch rear one, both rated 800 cd/m2 typical brightness, with the rear panel reaching 1000 cd/m2 peak. For vlogging, or for a helmet or handlebar mount, that means you can check the framing without pulling the camera off its mount.
Stabilisation modes with published limits
RockSteady 3.0, RockSteady 3.0+, HorizonBalancing and HorizonSteady are the four modes DJI lists. The limits are the useful part: HorizonSteady works at 1080p or 2.7K (16:9) at 60 fps or below, HorizonBalancing adds 4K (16:9) at the same frame rates, and DJI states that electronic stabilisation does not apply in Timelapse or Slow Motion.
Colour for footage you plan to grade
The camera records 10-bit video in D-Log M or HLG at up to 120 Mbps in MP4 (HEVC). D-Log M is the flat profile, intended to hold highlight and shadow detail for grading later; HLG is the version for HDR playback without a grading step.
Built-in storage and a battery rated for cold
DJI gives 64 GB of internal memory with 47 GB usable, which means the camera records out of the box, and a 1950 mAh battery it lists at up to 240 minutes recording 1080p/24 at 25 C with the screens and Wi-Fi off. DJI also quotes up to 3.6 hours at -20 C in the same conditions — both are laboratory figures rather than field results.
Stabilisation in practice, and by the book
The slow-motion modes are where the limits bite first. DJI lists 4K at 120 fps, 2.7K at 120 fps and 1080p at 120 fps as 4x slow motion, and 1080p at 240 fps as 8x, all recorded natively — but none of those allow electronic stabilisation. DJI also describes a 1080p/960 "32x" super slow motion that is produced by interpolating frames of already-recorded footage, not captured at 960 fps.
Match the mode to the mount and the limits stop mattering. HorizonSteady is the one to pick when the horizon has to stay level, such as a camera on a handlebar or a helmet, but it tops out at 1080p or 2.7K (16:9) at 60 fps. If you want 4K with a locked horizon, HorizonBalancing covers that at 60 fps or below.
Using it in and around water
The depth rating is stated in two parts: to 20 m with the camera as it comes, and to 60 m with the waterproof case. DJI recommends the case for long underwater sessions or where water impact is strong, and rates both the camera and the case IP68.
DJI also names what the camera is not built for: hot springs, extreme underwater environments and corrosive or unknown liquids. The published operating range is -20 C to 45 C, and charging should happen between 5 C and 40 C — worth knowing if you shoot in winter and want to top the battery up outdoors.
Storage, audio and power across a shoot day
With 47 GB usable internally and microSD support to 1 TB, the camera can be shot with on day one and given a card later. Audio comes from three built-in microphones recording 48 kHz 16-bit AAC, and DJI documents connecting a third-party microphone over the camera’s USB-C port with a suitable cable.
Charging is the one place DJI is silent on numbers. Its FAQ says the camera supports fast charging with a 30 W USB-C charger, sold separately, and the specifications table lists no charging duration at all. Anyone planning long days should carry spare batteries and plan around that missing figure rather than guess at it.
Who should buy the DJI Osmo Action 5 Pro, and who should skip it
Who should buy the DJI Osmo Action 5 Pro
- You mount a camera to a helmet, handlebar or chest harness and want something that survives the trip.
- You want to frame yourself: the front touchscreen is unusual in a camera this size.
- You shoot in cold weather and need a camera rated to -20 C.
- You grade your footage and want 10-bit D-Log M rather than a baked-in look.
Who should skip it
- You need a published charging time before you buy — DJI does not publish one.
- Your shots are mostly timelapses or slow motion, because DJI states electronic stabilisation is off in both.
- You dive past 60 m, which is beyond the camera and case rating DJI gives.
- You expect native 4K at 240 fps: DJI lists 1080p as the top slow-motion capture rate.
Where the Osmo Action 5 Pro fits
Riders and drivers

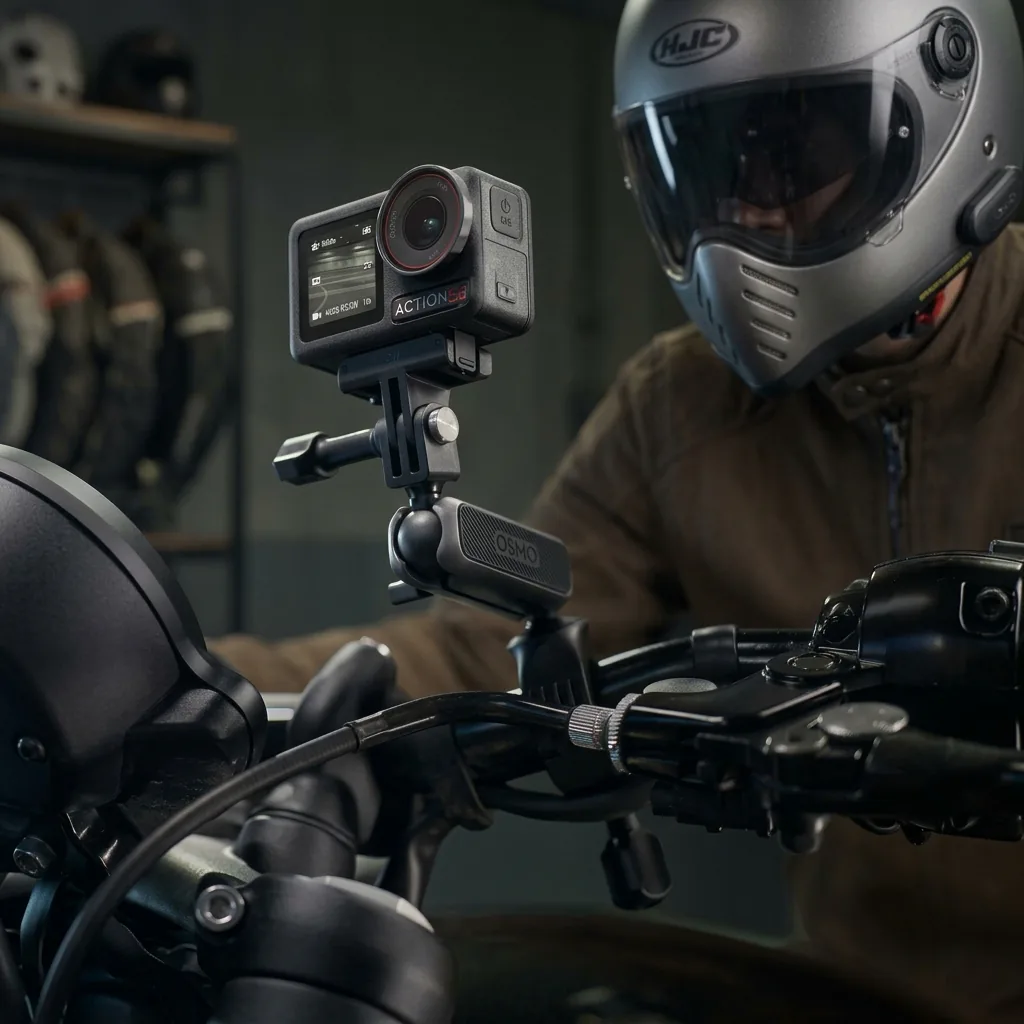

A handlebar or helmet mount, a 146 g body and HorizonSteady at 60 fps or below keep the footage level without a gimbal.
Snorkelling and shallow dives
To 20 m without a housing and 60 m with DJI’s case, with IP68 on both — and DJI’s own warning against hot springs and corrosive water.
Hiking and travel
47 GB built in means the first day is covered before a card is bought, and DJI rates the battery at up to 240 minutes per charge.
DJI Osmo Action 5 Pro pros and cons
Pros
- 1/1.3-inch sensor with stills up to 40 MP
- 4K at up to 120 fps, and 1080p at up to 240 fps
- Four stabilisation modes with the frame-rate limits published
- 47 GB of usable built-in storage plus microSD support to 1 TB
- Two OLED touchscreens, including a front one for framing
- Rated to 20 m without a housing and to -20 C operation
Cons
- DJI publishes no charging time for the camera
- Electronic stabilisation is unavailable in Timelapse and Slow Motion
- HorizonSteady and HorizonBalancing stop at 60 fps or below
- Runtime and cold-weather figures come from DJI laboratory testing
Buying the DJI Osmo Action 5 Pro in the US
Decide the water question first, because it changes what you need in the box. If the camera is for rain, mud and the odd splash, the 20 m rating on its own is more than enough. If it is for diving, you need DJI’s waterproof case to reach the 60 m rating, and that case is not part of every combination DJI ships.
Then match the mode list to what you actually shoot. HorizonSteady stops at 1080p or 2.7K at 60 fps or below, so a 4K slow-motion clip gets no horizon lock at all, and neither mode survives in Timelapse. Finally, budget for a microSD card: the 47 GB inside will get you started, and DJI supports cards up to 1 TB.
Frequently asked questions: DJI Osmo Action 5 Pro
Is the DJI Osmo Action 5 Pro waterproof?
Yes, to 20 m without a housing and to 60 m with DJI’s waterproof case. DJI rates the camera and the case IP68 and warns against hot springs, extreme underwater environments and corrosive liquids.
How long does the Osmo Action 5 Pro battery last?
DJI quotes up to 240 minutes recording 1080p/24 at 25 C with RockSteady on and the screens and Wi-Fi off, and up to 3.6 hours at -20 C under the same conditions. Both are laboratory measurements, not field results.
How long does the Osmo Action 5 Pro take to charge?
DJI does not publish a charging time on its specifications or FAQ pages. It states that a 30 W USB-C charger is supported and sold separately.
Can the Osmo Action 5 Pro record 4K at 120 fps?
Yes, in both 16:9 and 4:3 at 4K, and at 2.7K. The highest native frame rate DJI lists is 1080p at 240 fps for 8x slow motion; the 1080p/960 “32x” mode DJI describes is produced from recorded footage by frame interpolation.
Does the Osmo Action 5 Pro have built-in storage?
Yes: 64 GB in total, with 47 GB available to use, plus microSD support for cards up to 1 TB.
Does the Osmo Action 5 Pro have a front screen?
Yes. DJI lists a 1.46-inch front OLED touchscreen and a 2.5-inch rear one, with the rear panel rated up to 1000 cd/m2 peak brightness.
Do the stabilisation modes work in every shooting mode?
No. DJI states electronic stabilisation is not supported in Timelapse or Slow Motion, and HorizonSteady and HorizonBalancing are limited to 1080p, 2.7K or 4K (16:9) at 60 fps or below.
